A major chemical processing facility in Saudi Arabia experienced persistent corrosion and efficiency problems in their absorption towers handling highly acidic waste streams in early 2024. After replacing their existing ceramic packing with Cecebe HP porcelain saddles, they achieved a 42% improvement in mass transfer efficiency, eliminated corrosion-related downtime, and extended maintenance intervals from 6 months to over 3 years. This remarkable transformation demonstrates why Cecebe HP porcelain saddles have become the industry standard for demanding chemical tower applications worldwide.
Cecebe HP porcelain saddles represent an advanced evolution of ceramic random packing designed specifically for harsh chemical processing environments. These specially shaped ceramic elements feature a unique saddle configuration that optimizes vapor-liquid contact while maintaining excellent hydraulic characteristics. The high-purity porcelain construction delivers unmatched corrosion resistance across the complete pH spectrum and temperature ranges up to 1000°C.
Industries including chemical manufacturing, petrochemical refining, environmental treatment, and metallurgical processing rely on Cecebe HP porcelain saddles for critical mass transfer operations. For organizations seeking reliable Cecebe HP porcelain saddles in Dubai, understanding the technical specifications and application advantages ensures optimal tower performance and long-term reliability.
Understanding Cecebe HP Porcelain Saddles Design

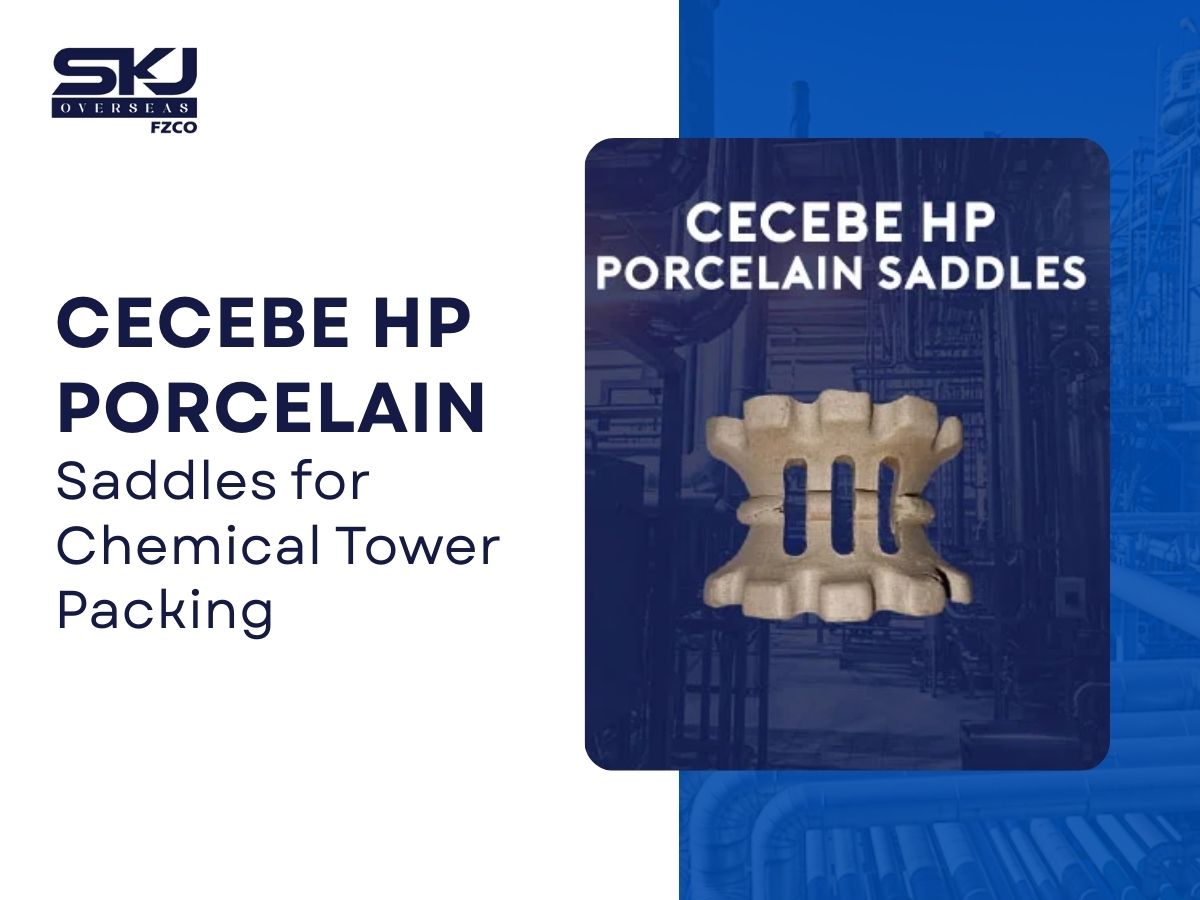

Cecebe HP porcelain saddles feature a distinctive saddle shape with curved surfaces and strategically positioned openings that create optimal flow patterns for both liquid and vapor phases. The geometry promotes uniform distribution, reduces channeling, and maximizes interfacial contact area. This innovative design evolved from decades of research into random packing fluid dynamics.
Manufacturing processes employed by leading Cecebe HP porcelain saddles manufacturers involve precision molding, controlled drying, and high-temperature firing at 1300-1400°C. The porcelain composition typically contains 45-50% alumina, ensuring exceptional mechanical strength and thermal shock resistance. Quality control procedures verify dimensional accuracy, surface finish, and structural integrity.
Available sizes range from 15mm to 100mm, with 25mm, 38mm, and 50mm being most common for industrial applications. The specific surface area varies by size, ranging from 200-350 m²/m³, while void fractions typically exceed 70% to maintain high capacity. Cecebe HP porcelain saddles suppliers provide detailed specifications including packing factors, pressure drop characteristics, and flooding velocities for each size.
Key Performance Advantages of Cecebe HP Porcelain Saddles
1. Superior Corrosion Resistance
Cecebe HP porcelain saddles exhibit exceptional resistance to virtually all acids, alkalis, and organic solvents at concentrations and temperatures where metallic and plastic packings fail. The high-purity porcelain composition remains inert in concentrated sulfuric acid, hydrochloric acid, nitric acid, and caustic solutions. This universal chemical compatibility makes them ideal for multi-purpose towers handling various process streams.
Unlike stainless steel packings that suffer pitting corrosion in chloride environments, or plastic packings that degrade under oxidizing conditions, Cecebe HP porcelain saddles maintain structural integrity indefinitely. The dense, non-porous surface prevents chemical absorption and eliminates contamination risks in pharmaceutical and food-grade applications.
2. High Temperature Stability
Operating temperature capability extends to 1000°C, far exceeding limitations of metallic and plastic alternatives. Cecebe HP porcelain saddles maintain dimensional stability and mechanical strength throughout thermal cycling without warping, cracking, or degradation. This thermal resistance proves essential in applications involving hot acid regeneration, thermal oxidation, and high-temperature absorption.
The low thermal expansion coefficient minimizes stress during temperature fluctuations. Cecebe HP porcelain saddles exporters recommend these materials for processes involving rapid temperature changes that would damage less stable packing types.
3. Excellent Wetting Characteristics
The hydrophilic porcelain surface promotes uniform liquid spreading across packing elements. This superior wetting efficiency ensures maximum utilization of available surface area for mass transfer. Systems handling aqueous solutions particularly benefit from the complete wetting achieved with Cecebe HP porcelain saddles.
Surface treatments available from specialized Cecebe HP porcelain saddles manufacturers can modify wetting properties for specific applications. These treatments enhance performance in systems with low surface tension liquids or foaming tendencies.
Primary Applications of Cecebe HP Porcelain Saddles
1. Acid Recovery and Purification Systems
Cecebe HP porcelain saddles dominate applications involving concentrated acid handling including sulfuric acid recovery, hydrochloric acid purification, and nitric acid concentration. The combination of corrosion resistance and high-temperature capability makes them ideal for acid regeneration processes in metal pickling operations and spent acid recovery systems.
Sulfuric acid manufacturing plants utilize Cecebe HP porcelain saddles in absorption towers where 98% acid contacts hot gases containing sulfur trioxide. The materials withstand both the extreme acidity and temperatures exceeding 200°C without degradation.
2. Caustic and Alkaline Processing
Caustic scrubbing systems for chlorine absorption, sodium hydroxide concentration, and alkaline waste treatment rely on the chemical resistance of Cecebe HP porcelain saddles. The materials resist attack from concentrated caustic solutions at elevated temperatures where other packing types dissolve or degrade.
Chlor-alkali plants processing concentrated sodium hydroxide and chlorine gases specify Cecebe HP porcelain saddles in Dubai for their scrubbing and recovery towers. The extended service life reduces maintenance frequency and improves operational reliability.
3. Environmental Treatment Applications
Air pollution control systems including acid gas scrubbers, odor control towers, and VOC absorbers extensively use Cecebe HP porcelain saddles. The chemical inertness allows treatment of diverse contaminant streams without cross-contamination concerns.
Industrial wastewater treatment plants utilize Cecebe HP porcelain saddles in stripping towers for removing volatile organic compounds and in biological trickling filters for oxidizing pollutants. The biological inertness prevents biofilm interference with mass transfer performance.
4. Chemical Manufacturing Processes
Key Chemical Industry Applications:
- Chlorine drying and purification towers
- Hydrogen chloride absorption systems
- Ammonia scrubbing and recovery units
- Solvent recovery and purification columns
- Absorption cooling systems
- Pharmaceutical intermediate purification
- Specialty chemical synthesis reactors
- Fertilizer production absorption towers
The versatility of Cecebe HP porcelain saddles makes them suitable for multi-purpose towers processing different chemicals throughout production campaigns. The cleaning ease and chemical compatibility eliminate cross-contamination risks when switching between products.
Technical Specifications and Performance Data
Cecebe HP porcelain saddles exhibit superior mechanical properties compared to standard ceramic packings. Bulk density ranges from 600-750 kg/m³ depending on size, while individual piece weight varies from 2 grams for 15mm saddles to 180 grams for 100mm units.
Performance Characteristics by Size:
- 15mm saddles: Surface area 350 m²/m³, void fraction 72%, HETP 0.3-0.4m
- 25mm saddles: Surface area 260 m²/m³, void fraction 74%, HETP 0.4-0.6m
- 38mm saddles: Surface area 190 m²/m³, void fraction 76%, HETP 0.6-0.8m
- 50mm saddles: Surface area 140 m²/m³, void fraction 78%, HETP 0.8-1.2m
Crushing strength exceeds 1000N for quality products, ensuring resistance to mechanical damage during installation and operation. Cecebe HP porcelain saddles suppliers provide detailed test reports verifying mechanical properties and dimensional tolerances.
Pressure drop characteristics represent a critical design parameter for tower sizing. Cecebe HP porcelain saddles exhibit lower pressure drop than equivalently sized Raschig rings or Berl saddles while maintaining comparable or better mass transfer efficiency. Flooding velocities typically range from 2.0-3.5 m/s depending on size, liquid load, and system properties.
Installation and Operational Guidelines
Proper installation techniques maximize the performance and longevity of Cecebe HP porcelain saddles. Tower preparation includes verifying support grid design, ensuring adequate liquid distribution, and confirming vessel cleanliness.
Installation Best Practices:
- Inspect packing for damage before loading into tower
- Use proper dumping techniques to minimize breakage during installation
- Fill tower uniformly to prevent segregation by size or shape
- Compact gently to achieve specified bed density
- Install liquid distributors with appropriate orifice density
- Verify redistribution requirements for tall packed beds
- Conduct hydraulic testing before introducing process chemicals
Operating within design parameters ensures optimal performance from Cecebe HP porcelain saddles. Exceeding maximum liquid or vapor loads can cause flooding, while operating below minimum wetting rates may result in incomplete surface utilization. Cecebe HP porcelain saddles exporters provide operating envelopes specifying acceptable ranges for each application.
Advantages Over Alternative Packing Materials
1. Cecebe HP Porcelain Saddles vs. Metal Packings
Metal random packings including Pall rings and metal saddles offer good mechanical strength but suffer corrosion in acidic or oxidizing environments. Cecebe HP porcelain saddles eliminate corrosion concerns, reducing maintenance costs and preventing product contamination from metal dissolution.
While metal packings may offer slightly higher capacity, the unlimited chemical resistance of Cecebe HP porcelain saddles makes them more cost-effective for corrosive services. Service life typically extends 10-20 years compared to 2-5 years for metals in aggressive environments.
2. Cecebe HP Porcelain Saddles vs. Plastic Packings
Plastic random packings like polypropylene or PVDF offer corrosion resistance and light weight but face temperature and oxidation limitations. Cecebe HP porcelain saddles operate at temperatures exceeding 200°C where plastics melt or deform. Strong oxidizing agents including hot concentrated nitric acid and chromic acid degrade plastics but don’t affect porcelain.
The higher density of Cecebe HP porcelain saddles provides better resistance to vibration and wind-induced movement in outdoor installations. Plastic packings may require bed hold-down systems that porcelain packings don’t need.
3. Cecebe HP Porcelain Saddles vs. Standard Ceramic Packings
Standard ceramic Raschig rings and Berl saddles offer chemical resistance but provide lower efficiency than Cecebe HP porcelain saddles. The optimized saddle geometry creates better liquid distribution and vapor-liquid contact compared to simple cylindrical or saddle shapes.
Quality differences between manufacturers significantly impact performance. Premium Cecebe HP porcelain saddles manufacturers maintain tighter dimensional tolerances and superior surface finish, ensuring consistent hydraulic behavior throughout the packing bed.
Quality Control and Performance Testing
Leading Cecebe HP porcelain saddles manufacturers implement comprehensive quality assurance programs throughout production. Raw material testing verifies chemical composition and purity levels.
Quality Verification Procedures:
- Dimensional inspection using calibrated gauges and optical systems
- Surface area measurement through BET nitrogen adsorption analysis
- Crushing strength testing on statistical sample populations
- Acid resistance verification through immersion testing
- Thermal shock resistance evaluation via rapid temperature cycling
- Visual inspection for surface defects, cracks, or contamination
Performance testing in pilot-scale columns validates mass transfer efficiency and pressure drop characteristics. Reputable Cecebe HP porcelain saddles suppliers provide third-party test certifications and material safety data sheets with each shipment.
Economic Considerations and Life Cycle Costs
Initial costs for Cecebe HP porcelain saddles exceed plastic packings but remain competitive with specialty metal alloys. The economic analysis must consider total life cycle costs including installation, energy consumption, maintenance, and replacement frequency.
Extended service life in corrosive environments often provides superior value despite higher upfront investment. Energy efficiency comparisons should account for pressure drop differences affecting blower or compressor power requirements. Cecebe HP porcelain saddles in Dubai installations typically demonstrate payback periods of 2-4 years through reduced maintenance and energy savings.
FAQ’s About Cecebe HP Porcelain Saddles
1. What is the maximum temperature rating for Cecebe HP porcelain saddles in chemical towers?
Cecebe HP porcelain saddles operate continuously at temperatures up to 1000°C without degradation or structural damage.
2. How do Cecebe HP porcelain saddles compare to standard ceramic packing efficiency?
Cecebe HP porcelain saddles offer superior mass transfer efficiency, lower pressure drop, and better wetting characteristics.
3. What sizes are available for Cecebe HP porcelain saddles in industrial applications?
Cecebe HP porcelain saddles are available in sizes from 15mm to 100mm, with 25mm to 50mm most common.
4. Can Cecebe HP porcelain saddles handle both concentrated acids and caustic solutions?
Yes, Cecebe HP porcelain saddles resist all concentrations of acids and alkalis at elevated temperatures.
5. What is the typical service life in highly corrosive chemical processing environments?
Cecebe HP porcelain saddles typically last 10-20 years in corrosive environments with proper operation and maintenance.
6. How are Cecebe HP porcelain saddles installed in chemical processing towers?
Cecebe HP porcelain saddles are carefully dumped into towers using controlled techniques to minimize breakage.
Conclusion
Cecebe HP porcelain saddles have established themselves as the superior choice for demanding chemical tower packing applications requiring exceptional corrosion resistance, high-temperature capability, and reliable long-term performance. The combination of advanced geometry, high-purity porcelain construction, and proven hydraulic characteristics delivers measurable improvements in mass transfer efficiency, operational reliability, and total cost of ownership.
Understanding the technical advantages, proper sizing methodology, and installation requirements ensures optimal performance from Cecebe HP porcelain saddles in absorption, stripping, scrubbing, and distillation applications. The universal chemical compatibility and thermal stability make these materials suitable for the most challenging process conditions.
